The multi-parameter digital transmitter can support all of the company's digital online water quality sensors and is equipped with comprehensive external interfaces, facilitating functions such as sensor networking, remote control, and fault diagnosis.
Types of measurement |
Simultaneously display parameters such as pH, dissolved oxygen, conductivity, turbidity, temperature, COD, ammonia nitrogen, residual chlorine, fluoride, and chloride, with a maximum of 16 parameters displayed. |
Display screen | 7-inch color touch screen, Chinese operating interface, easy to operate. |
Display size | 154mm*86mm |
Resolution | 800*480 |
Analog output | 2 channels of 4~20mA current output |
Relay output | Route 3,, program-controlled output (can control self-priming pump, automatic cleaning) |
Digital communication | 1 x RS485 (standard Modbus-RTU protocol), other protocols can be customized |
Data storage | Data storage, data viewing, and data USB copy functions, with the ability to set the storage cycle independently. |
Password protection | Password protection corrects the data to prevent non-specialist malfunctions |
Working environment | 5~45℃, 0~95%RH |
Protection level | IP65 |
Shell material | PC+ABS |

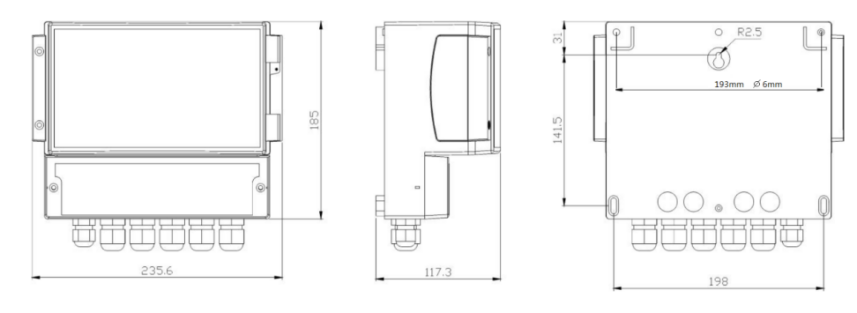

Dimensions | 235mm*185mm*117mm (H * W * D) |
Working voltage | 220VAC, can be customized to 24VDC |
